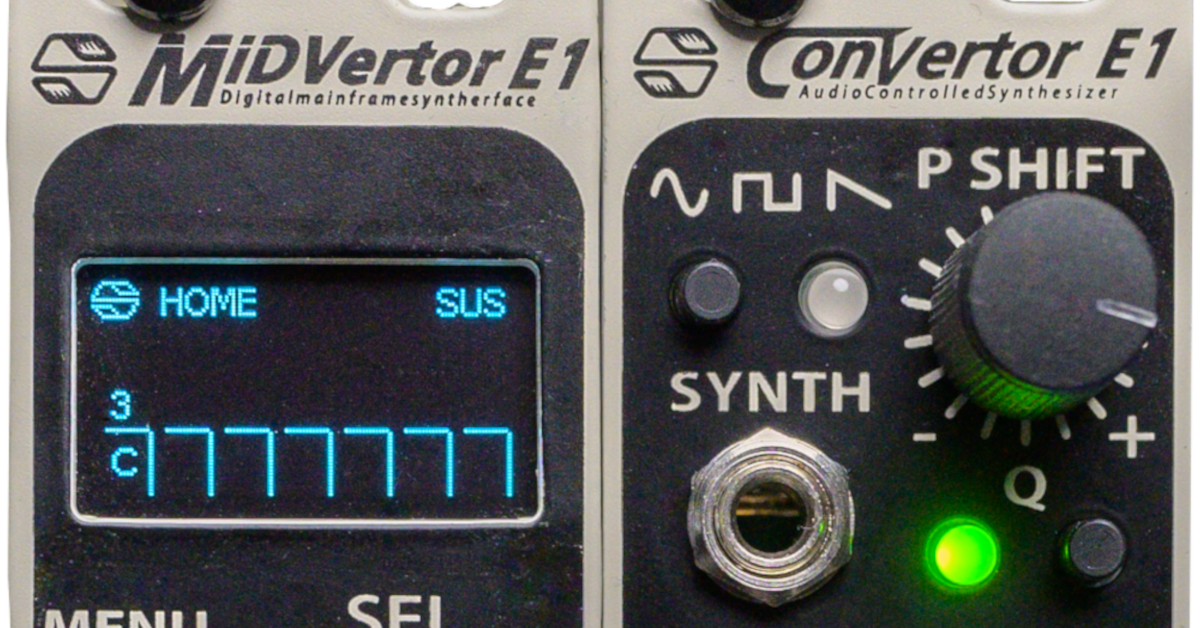

DuoPack E1
Description

The DuoPack is a combination of a ConVertor E1 and a MIDVertor E1 neatly joined together for a plug n' play experience. Together they act like the ultimate pitch tracking synthesizer, giving you monophonic pitch CV output as well as MIDI output.
$720.00 USD $720.00 USD
In stock
Specifications:
  • Audio to CV and MIDI (monophonic)
  • Audio to synthesizer voice
  • ENV follower
  • Internal ENV vari-mu style compressor / expander
  • Standard TS sustain pedal input
  • Sustain freezes MIDI notes & int. synthesizer
  • MIDI in / out, thru
  • Assignable MIDI channel
  • MIDI pitch bend on / off
  • MIDVertor E1 can accommodate up to 7 ConVertor E1's and merge their MIDI
  • Firmware 0.9 updatable via SD card slot at the back
  • Width: 3 cm (6 HP)
  • Depth: 4.7 cm (5 cm recommended)
  • Power consumption: 140 mA estimated

The DuoPack E1

Translating between your audio and the synthesizer world

Making your modules think together

Check nowView details

The E1 modules

Connected via 4-pin bi-directional digital connection, those two Eurorack modules make up a new way of playing and controlling your synthesizers. Play a monophonic audio source into the audio input and get 1V/octave pitch CV, ENV CV, and Gate CV outputs. You can add an external 1V/octave pitch input into the FM IN, Sustain pedal to freeze pitch and ENV. Internal DCO can work in either Audio Controlled Oscillator mode or in VCO mode leaving the preamp independent. Connect up to 7 units to add voices to the same MIDI channel. Audio to MIDI conversion is done by an ultra-fast custom firmware.
Check now

Play any monophonic instrument or voice and get 1V/oct CV, ENV CV, Gate CV signals. MIDI interpretation as well as its own synthesizer outputs extracted from your audio source.

Easily add more ConVertor E1 modules for a polyphonic group of mono modules.

With the MIDVertor E1, the ConVertor E1 can now control external MIDI synths, but with upcoming update, be able to receive MIDI and play like one

Pressing down a connected sustain pedal will not only freeze MIDI notes, but also freezes the internal synth engine of the ConVertor E1

The DuoPack is based on 3 ARM micro-processors running custom firmwares, communicating in real time consuming around 150 mA
Current firmware 0.9 does not (yet) include visible features like external MIDI control, ARP and other planned features. Purchasing the DuoPack E1 does however, includes a lifetime free firmware updates.
Check now

Product description:

United by our 4-pin digital connection, those two Eurorack modules make up the ultimate hybrid controlled, synth channel. Convert audio to PITCH, ENV & GATE CV's. Control its oscillator with external 1V/octave pitch input. Connect a standard TS Sustain pedal to freeze its pitch and/or other functions. Internal DCO can work as Audio Controlled Oscillator/VCO. Connect any number up to 7 ConVertor E1s to unify them in polyphonic operation by adding MIDVertor E1 expander module. Parallel Audio to merge MIDI (MIDI 2.0 ready), audio to MIDI conversion, via ultra-fast custom firmware. compression and optional full synth voice with presets. Switchable to work in VCO mode where the pitch will be controlled from either 1V/oct pitch CV in while preamp stays independent with the ENV extraction.
